IEC60320-1 Appliance Couplers Endurance Test Equipment for Testing
Break Capacity and Normal Operation
1. Introduction
The

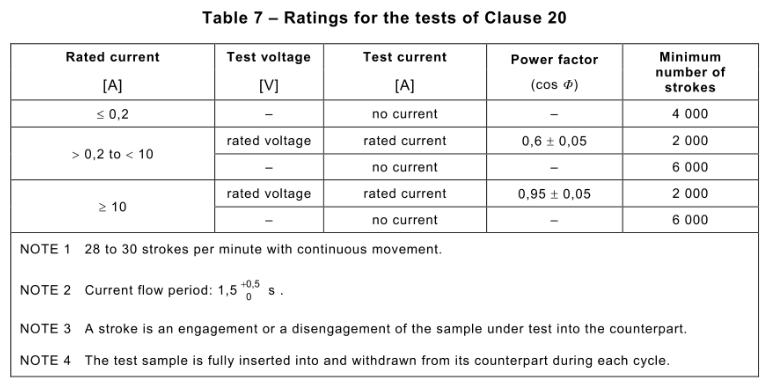

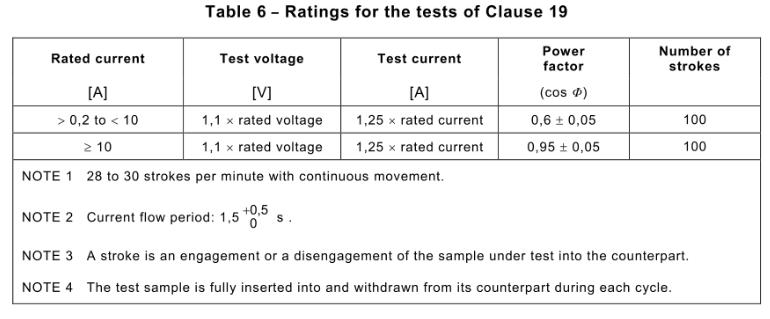

appliance couplers endurance test equipment designs to meet the test requirements of IEC60320-1:2015 clause 19
break capacity and clause 20 normal operation, for testing
connector and appliance outlet.
The number of working station can be customized as per user’s
requirement (that is depends on how many specimens that will be
tested at one time). The endurance test equipment uses the servo
motor to drive the slide rail assembly with clamps to do
reciprocating rectilinear movement, thereby completing the
insertion and extraction of connector/appliance outlet and
appliance inlet/plug connector. Using universal mounting fixture
(X, Y, Z three-axis adjustable) to hold the sample. And the test
speed, test times and power on-off time can be preset by 7 inch
touch screen,and controlled by PLC. The test apparatus adopts
workbench design, and equip with 4 casters to make the machine
moves easily.
Note: For testing standardized type of connector or appliance
inlet, counterpart appliance inlet or plug connector shall have
polished, hardened steel pins, and dimension as specified in the
relevant standard sheet. Pego can customize the endurance test
gauges. For testing non-standardized types, the counterpart as
specified by the manufacturer shall be used.
2. Specification
| Control unit | PLC+7 inch touch screen |
| Test stations | 3 |
| Test driver | Servo motors (3 working stations drives independently) |
| Moving structure | Ball screw rod equip with linear slide drive |
| Test speed | 1-80mm/s (independently settable for each working station) |
| Test method | independently or simultaneously (one station is abnormally stop,
the other station can works normally) |
| Test time (power on-off time) | 0-99s (settable) |
| Number of strokes | 1-999999 (Each station counts independently, and the machine
automatically stops when the count reaches the set value) |
| Mounting fixture | 1). X,Y, Z axis adjustable. 2). The fixture seat can be moved up and down, right and left,
forward and backward to adapt to samples with different shapes. |
| Alarming function | 1). independently detect whether there is current in the test
circuit, and intelligently detects soldering deadness,
non-conductivity, and long-term energization. Memorize the number
of soldering deadness and non-conductive times and make a buzzer
alarm prompt. 2). When a test failure occurs, the machine can detect and promptly
cut off the load power. 3). Each work station has a short circuit protection device |
| Test items | Breaking capacity test for connector and appliance outlet Normal operation test for connector and appliance outlet |
| Dimension | L1200mm*W200mm*H1500mm |
| Working Power | AC220V/50Hz |
