IEC60320-1 Free Fall Test Rotating Barrel with 5r/m Rotating Speed for Testing Connector and Plug Connector

1. Introduction

The free fall test rotating barrel is designed according to IEC60068-2-31clause 5.3/figure A.1, IEC60320-1 clause 23.2, IEC60598-1 clause 4.13.5, IEC60884-1 clause 24.2 for repeat free fall test. The free fall test is to check the mechanical strength of the electrical appliances, such as plugs, socket-outlets, connector and plug connectors. Sample shall be placed in the tumbling barrel and subjected to prescribed number of falls. The operation panel is equipped with an emergency stop button, which is convenient for stopping the test at any time.

For testing the connectors and plug connectors, the test sample shall be subjected 500 or 100 repeat free fall test. After the test, the test samples shall show no damage and no part shall have become detached or loosened which may influence the electrical safety.

2. Specification

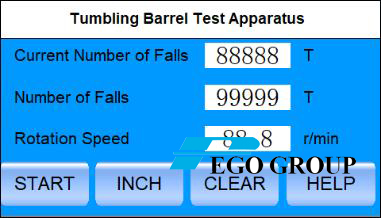

3. Interface

4. Attention for use

1) The power supply socket must be reliably grounded. Powering the device from an unreliably grounded socket may cause electric shock. Please check that the access socket is reliably grounded before using this test device.

2) This testing equipment has the risk of mechanical injury. Please ensure that there are no people and other obstacles that may be injured within the tumbling barrel’s stroke, including any testing materials and equipment. The caster brakes of this equipment must be locked when not moving.

3) The position of the rotating barrel can only be adjusted by the motor, it is forbidden to forcibly rotate the rotating barrel, otherwise it may directly and permanently damage the transmission gear box, and the resulting damage is not covered by the warranty.

4) When the test equipment is not in use, be sure to cut off the power and unplug the plug from the socket to avoid damaging the equipment or causing the risk of electric shock.

5) Please keep it in a ventilated and dry environment when not in use.
