IEC60350-2 Stainless steel Standardized Cookwares for Measuring the
Energy comsuption o f Hobs
1. Introduction

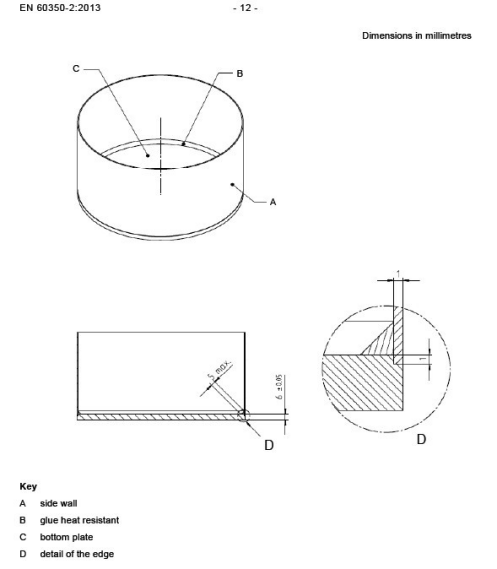

The standardized cookwares are designed according to EN60350-2:2017
for measuring the energy comsuption of hobs. The side wall of the
vessel is made of 1.4301 stainless steel (stainless steel AISI 304)
with thickness 1mm±0.05mm, the bottom of the vessel is made of
1.4016 stainless steel (stainless steel AISI430) with thickness
6mm±0.05mm, the cookware is cylindrical without handle or
protrusions. And the lid is made of aluminum with thickness is
2mm±0.05mm, each hole circle of the lid has a diameter of
16mm±0.1mm, the holes shall be evenly distributed on the hole
circle. The lid is flat and can accommodate a temperature sensor in
the center.
2. Specification
Diameter of the cookware bottom (outside) mm | Diameter of the lid mm | Lid hole circle diameter mm | Number of holes on the circle | Total cookware height (outside) mm | Flatness of cookware bottom mm | Water load g | Cooking zone size category mm | Standardised cookware categories |
| 120±0.5 | 130±1 | 80±1 | 7 | 125±0.5 | ≥0 <0.075 | 650 | ≥100 <130 | A |
| 150±0.5 | 165±1 | 110±1 | 11 | 125±0.5 | ≥0 <0.075 | 1030 | ≥130 <160 |
| 180±0.5 | 200±1 | 140±1 | 16 | 125±0.5 | ≥0 <0.075 | 1500 | ≥160 <190 | B |
| 210±0.5 | 230±1 | 170±1 | 22 | 125±0.5 | ≥0 <0.1 | 2050 | ≥190 <220 | C |
| 240±0.5 | 265±1 | 200±1 | 29 | 125±0.5 | ≥0 <0.1 | 2700 | ≥220 <250 |
| 270±0.5 | 300±1 | 230/210a±1 | 18/18a | 125±0.5 | ≥0 <0.15 | 3420 | ≥250 <280 | D |
| 300±0.5 | 330±1 | 260/210a±1 | 23/22a | 125±0.5 | ≥0 <0.15 | 4240 | ≥280 <310 |
| 330±0.5 | 365±1 | 290/270a±1 | 27/27a | 125±0.5 | ≥0 <0.15 | 5140 | ≥310 ≤330 |
| a Number of holes are arranged on two hole circles |
3. Frequently asked questions
1). What is the material of the standardized cookwares?
Pego: ide wall of the vessel is made of 1.4301 stainless steel (stainless
steel AISI 304), the bottom of the vessel is made of 1.4016
stainless steel (stainless steel AISI430), the lid is made of
aluminum.
2). Can I buy one size?
Pego: Yes, each size of standardized cookwares can be purchased
independently.
3). Can the cookwares come with calibration certificates?
Pego: Yes, the cookwares can come withe calibration certificates
issued by an ISO17025 authorized lab, the calibration cost is
charged separately.
4). Will the cookwares come with temperature sensor holders?
Pego: Yes, each cookware will configure with a temperature senor
holder.
