Standard Test Finger

1.Introduction

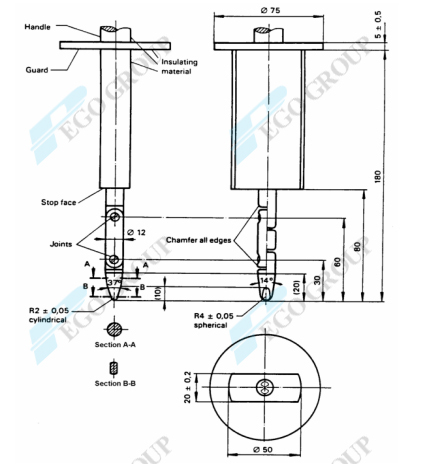

The standard test finger is designed to meet the test requirements of IEC60601-1 clause 5.9.2.1 & figure 6, IEC61032figugre 2, IEC62368-1 annex V.1.2 & figure V.2, IEC60335-1 clause 8.1, IEC60529, IEC60598-1 clause 8.2.5, IEC60884-1 clauses 10.1&16.2.2, AS/NZS3112 clause 3.8.1, for checking the accessibility to hazardous parts of electronic devices.

The standard test finger consists by dactylogryposis and handle. The dactylogrypossis has two active joints that can bend in 90 degrees. The finger part is made of steel material, the handle is made of nylon, and has a terminals of M6 threaded hole to work with force gauge. Or the probe can built-in 50N thruster to apply appropriate force directly during the test. The test probe B is to simulate the person’s finger, to evaluate the protection of person’s finger from hazard parts (Live parts or mechanical parts) of enclosure. Standard test finger is the IP code probe for IP2X testing.

2. Specification

Pego Electronics is founded by PEGO GROUP in 2011, a professional high-tech enterprise engaged in developing, marketing and service for electronic test equipment. Our business scope includes IP testing equipment, dust chamber, pendulum and vertical impact testing equipment, flame test apparatus,  glow wire test apparatus, needle flame tester, tracking index tester, iec61032 IP code probes, IEC60061-3 gauges for lamp caps and holders, UL498/VDE0620/BS1363-1 gauges for plug and socket, ground resistance tester, insulating resistance tester, hipot tester, temperature chamber, spring hammer,  tumbling barrel test equipment, test vessels, ESD gun, surge generator, goniophotometer, integrating sphere, spectroradiometer, power supply and etc. Besides, we can provide customized service.

Nowadays, we have several production lines in China, we imported advance technology and machines to make the gauges to keep high precision, and use the world famous-brand components to make the equipment more reliable. We promise the customers can get the high quality products during the shortest lead time, and we can provide the third-lab calibration certificates if customer request. The Pego’s products have been sold to the world wide, and widely used in labs, production line, QC and R&D departments with the features of high precision, simple operation, humanization design and good performance.

To Provide better user experience with better quality and better price is the motto of Pego. With the growth of test items, PEGO hope to grow with our users, and search for better test solution for our users.
