Brand Name : | Pego Electronics |
Model Number : | PG-ASNZSFF1 |
Certification : | Third-Lab Calibration Certificate |
Price : | negotiation |
Payment Terms : | T/T |
Supply Ability : | 100 set/month |
Delivery Time : | 15-20 working days |
Gauges for Flat and Round Pin Plugs
>1. >Introduction
Gauges for flat and round pin plugs are designed according to AS/NZS 3112 figure F1 and clauses 2.8.1 & 2.13.7.1 & 2.13.7.2, for dimension checking in general test, after free fall test and before pin bending test.
>2. >Specification
Material | Hardened steel |
Quantity | 2 (Gauge for two flat live pins and a round earth pin plug*1, gauge for two round live pins and a flat earth pin plug *1) |
Dimension | As per AS/NZS 3112 figure F.1) |

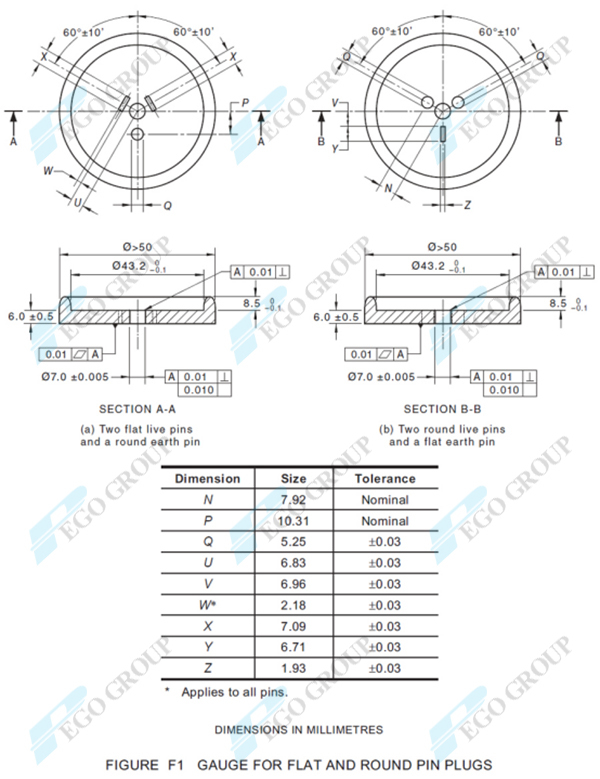

AS/NZS 3112 figure F1
![]() |
