IEC61010-1 Clause 6.2.2 Figure B.2 Jointed Finger Probe

1. Introduction

The Test Probe B, named as Jointed finger Probe, is designed according to the requirements of clause 5.9.2.1 and Figure 6 of IEC60601-1, IEC61032/GB/T 16842, Appendix V.1.2 and Figure V.2 of IEC62368-1, clause 8.1 of IEC60335-1, IEC60529, clause 8.2.5 of IEC60598-1, clause 10.1 and clause 16.2.2.2 of IEC60884-1, and clause 3.8.1 of AS/NZS 3112, and is used for inspection of openings in equipment that are unlikely to be reached by children.

2. Standard

IEC60601-1 Medical electrical equipment-Part 1: General requirements for basic safety and essential performance clause 5.9.2.1and figure 6

IEC61032Protection of persons and equipment by enclosures - Probes for verification figure 2

IEC62368-1 Audio/video, information and communication technology equipment –Part 1: Safety requirements Annex V.1.2 and figure V.2

IEC60335-1 Household and similar electrical appliances - Safety - Part 1: General requirements clause 8.1.1

IEC60529 Degrees of protection provided by enclosures (IP Code) Table 6

IEC60598-1 Luminaires–Part 1: General requirements and tests Clause 8.2.5

IEC61010-1 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance Clause 6.2.2 and figure B.2

IEC60884-1 Plugs and socket-outlets for household and similar purposes –Part 1: General requirements clause 10.1 and clause 16.2.2.2

AS/NZS3112 Approval and test specification—Plugs and socket-outlets clause 3.8.1

3. Parameters

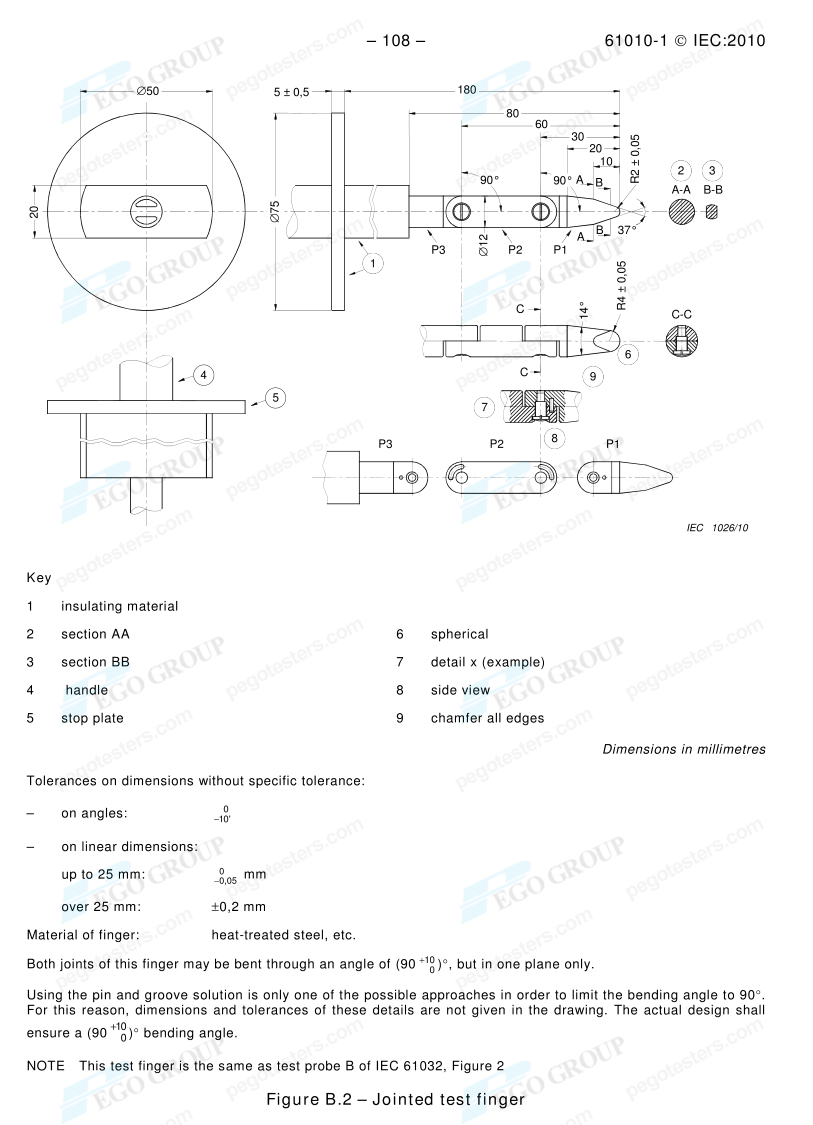

4. Figure
