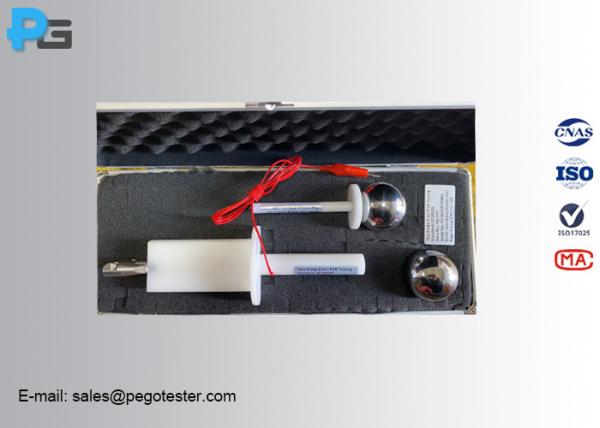

ISO17025 Approved Test Probe Kits IP Test Finger Probe Packed in Silver Box

1. Introduction:

The test probe kits are used to verify the degrees of protection stiulated in IEC60529, includes 50mm test sphere for IP1X testing, jointed test finger probe and 12.5mm test sphere for IP2X testing.

2. Specification

Jointed test finger

1). Introduction:

Jointed test finger is made according to IEC61032 figure 2, meet the requirements of UL507, UL1278 figure 8 and EN60529 figure 2.

Test probe B with 10N force is for IP2X testing, it means for the protection of person’s finger from hazard parts.

2). Specification

500g test sphere

1). Introduction:

500g test sphere is made according to IEC61032 figure 5, meet the requirement of IEC60529-IP. The diameter of the sphere is 50mm+0.05.

Test probe 1 is for IP1X testing, it means for the protection against solid foreign objects of Φ50mm or greater.

2). Specification:

Diameter of sphere: 50mm+0.05

Weight of the sphere:500g

Material: steel

12.5mm steel sphere

1). Introduction:

12.5mm test sphere is made according to IEC61032 figure 6, meet the requirement of IEC60529-IP2. The diameter of sphere is 12.5+0.2.

Test probe 2 is for IP2X testing, it means for the protection against solid foreign objects of Φ12.5mm or greater.

2). Specification:

diameter of the sphere: 12.5mm (50.8mm, 63.5mm, 38.1mm choosable)

weight of the sphere: 15g

Material: steel sphere

Handle for optional

3. COMPETITIVE ADVANTAGE
1). PEGO is professional on electrical lab testing equipment, our goal is to provide our customers with better price, better quality and better service.
2). Customized Service: We can help our customers to design and develop new equipment according to their requirement. We are flexible and capable Supplier.
3).Excellent Quality: 12 months warranty, 100% guarantee test before delivery. And all our products can pass the third-lab calibration which is authorized by ISO17025.
4). After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5). Quick Delivery: Our company provides just-in-time delivery, and our freight forwarder can provide transportation services at the most reasonable price to solve your worries.
6). Prompt Response to Customers: we promise to reply our customers within 24 hours.

Pego Electronics is founded by PEGO GROUP in 2011, a professional high-tech enterprise engaged in developing, marketing and service for electronic test equipment. Our business scope includes IP testing equipment, dust chamber, pendulum and vertical impact testing equipment, flame test apparatus,  glow wire test apparatus, needle flame tester, tracking index tester, iec61032 IP code probes, IEC60061-3 gauges for lamp caps and holders, UL498/VDE0620/BS1363-1 gauges for plug and socket, ground resistance tester, insulating resistance tester, hipot tester, temperature chamber, spring hammer,  tumbling barrel test equipment, test vessels, ESD gun, surge generator, goniophotometer, integrating sphere, spectroradiometer, power supply and etc. Besides, we can provide customized service.

Nowadays, we have several production lines in China, we imported advance technology and machines to make the gauges to keep high precision, and use the world famous-brand components to make the equipment more reliable. We promise the customers can get the high quality products during the shortest lead time, and we can provide the third-lab calibration certificates if customer request. The Pego’s products have been sold to the world wide, and widely used in labs, production line, QC and R&D departments with the features of high precision, simple operation, humanization design and good performance.

To Provide better user experience with better quality and better price is the motto of Pego. With the growth of test items, PEGO hope to grow with our users, and search for better test solution for our users.
