    IEC60529 Jet Water Simplified Test Device For IPX5 IPX6

    IEC60529 Strong Jet Water Simplified Test Device for IPX5 and IPX6 Testing


    1. Introduction:

    IPX5/6 strong jet water simplified test device is designed according to IEC60529 clause 14.2.5 and 14.2.6. Waterproof test simulates the condition of water jets and powerful water jets, which is mainly applied to electronic products, luminaire, electric components, motor and house-holding appliance. The waterproof test can help to judge the products’ performance, and provide the basis for design, improve and inspect.

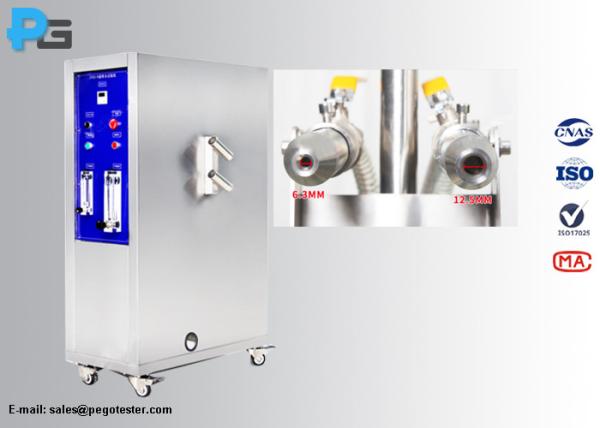

    The simplified test device is consisted by control units, Φ6.3mm and Φ12.5mm jet hose nozzles, the equipment is equipped with 4 casters so that it can be moved at will.


    IPX5 Water jets
    Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects. Test duration: at least 15 minutes, volume: 12.5 litres per minute, pressure 30 kPa at distance of 3 m.

    IPX6 Powerful water jets
    Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects. Test duration: at least 3 minutes, volume: 100 litres per minute, pressure 100 kPa at distance of 3 m.


    2. Features:

    ● For IPX5 and IPX6 waterproof testing.

    ● Mainframe is made by SUS304# stainless steel to ensure rustless for long time.

    ● Jet nozzles: strictly designed according to IEC60529.

    ● The water flow is adjusted by the flow meter and manually adjusted.

    ● The test time is controlled by a time relay.Time setting range: 0~999min (adjustable), after the test is completed, it will automatically stop.

    ● Control system: time relay + change-over switch, all electrical components adopt world-famous brands such as LS, Omron and etc..The electrical board layout is reasonable, the wiring is firm, and the marking is clear.

    ● Easy to operation, IPX5 and IPX6 testing can easy conversion.


    3. Specification:

    Control systemTime replay+IPX5/6 change-over switch
    Outer size (mm)300*800*1300 (L*W*H)
    Aperture diameter of IPX5 nozzle6.3mm
    Aperture diameter of IPX6 nozzle12.5mm
    Delivery rate for IPX5 (L/min)12.5±0.625
    Delivery rate for IPX6 (L/min)100±5
    Water pressure (Mpa)As per the standard requirement
    Flowmeter controlManual control
    Distance from specimen2.5~3m (manual control)
    Nozzle fixed wayHand-held
    MaterialSUS304 stainless steel
    ProtectionElectric leakage, hydropenia, short circuit
    Working power380V/50Hz, 3KW
    Power for EUT220V/50Hz
    Working condition5~35℃, ≤85%, 86kPa~106kPa
    Water source

    1. The user is required to configure a water source for the equipment at the installation site, with a water pressure not less than 0.2Mpa, and install a 4/8 inch faucet.

    2. The faucet is not more than 2 meters away from the equipment
