1. Introduction

The IK mechanical impact test apparatus is designed according to IEC60068-2-75 Test Ehc and IEC62262 (equivalent EN62262), and can meet the test requirements of IEC60598, EN50102. The IK Code was originally defined in European Standard BS EN 50102:1995 and amended in 1998, following its adoption as an international standard (IEC 62262) in 2002, the European standard was renumbered EN 62262. The IK code is from 00 to 10, and corresponding impact energy is from 0.14J to 20J.

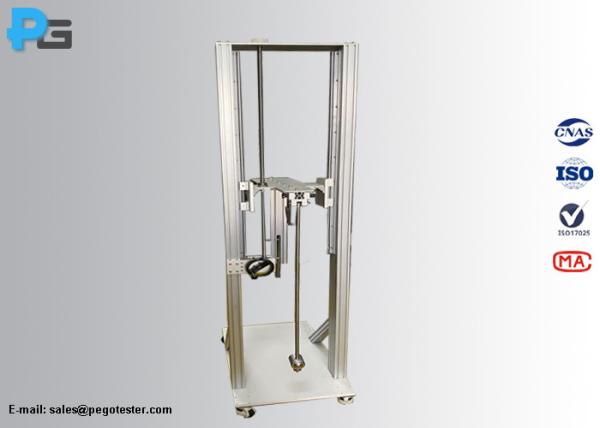

IK pendulum hammer is for IK07 to IK10 testing, the hammer is made by steel, the working principle is : the sample is placed in normal, then adjust the impact points, and position the impact device, then release the hammer to freely impact the hammer. The impact angle and impact height are adjustable.

The test rig is made of aluminum alloy, with four wheels at the bottom, and the whole device can move freely.

2. Parameter

Characteristics 0f Striking Elements
Energy/J	≤1 ±10%	2 ±5%	5 ±5%	10 ±5%	20 ±5%	50 ±5%
Equivalent mass±2%kg	0.25(0.2)	0.5	1.7	5	5	10
Material	Nylon	steel
R/mm	10	25	25	50	50	50
D/mm	18.5(20)	35	60	80	100	125
f/mm	6.2(10)	7	10	20	20	25
r/mm	-	-	6	-	10	17
l/mm	Depends

Degrees of protection against external mechanical impacts

3. Picture

4. COMPETITIVE ADVANTAGE
1). PEGO is professional on electrical lab testing equipment, our goal is to provide our customers with better price, better quality and better service.
2). Customized Service: We can help our customers to design and develop new equipment according to their requirement. We are flexible and capable Supplier.
3).Excellent Quality: 12 months warranty, 100% guarantee test before delivery. And all our products can pass the third-lab calibration which is authorized by ISO17025.
4). After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5). Quick Delivery: Our company provides just-in-time delivery, and our freight forwarder can provide transportation services at the most reasonable price to solve your worries.
6). Prompt Response to Customers: we promise to reply our customers within 24 hours

Pego Electronics is founded by PEGO GROUP in 2011, a professional high-tech enterprise engaged in developing, marketing and service for electronic test equipment. Our business scope includes IP testing equipment, dust chamber, pendulum and vertical impact testing equipment, flame test apparatus,  glow wire test apparatus, needle flame tester, tracking index tester, iec61032 IP code probes, IEC60061-3 gauges for lamp caps and holders, UL498/VDE0620/BS1363-1 gauges for plug and socket, ground resistance tester, insulating resistance tester, hipot tester, temperature chamber, spring hammer,  tumbling barrel test equipment, test vessels, ESD gun, surge generator, goniophotometer, integrating sphere, spectroradiometer, power supply and etc. Besides, we can provide customized service.

Nowadays, we have several production lines in China, we imported advance technology and machines to make the gauges to keep high precision, and use the world famous-brand components to make the equipment more reliable. We promise the customers can get the high quality products during the shortest lead time, and we can provide the third-lab calibration certificates if customer request. The Pego’s products have been sold to the world wide, and widely used in labs, production line, QC and R&D departments with the features of high precision, simple operation, humanization design and good performance.

To Provide better user experience with better quality and better price is the motto of Pego. With the growth of test items, PEGO hope to grow with our users, and search for better test solution for our users.
