IEC60529 IP07 Waterpoof Testing Equipment SUS304 Stainless Steel
Water Immersion Tank
1. Introduction
IPX7 immersion water tank is designed according to IEC60529-2001
regarding the second characteristic numerals 7. Waterproof test
simulates the condition of raining, which is mainly applied to
electronic products, luminaire, electric components, motor and
house-holding appliance. The waterproof test can help to judge the
products’ performance, and provide the basis for design, improve
and inspect.
IPX7 immersion water tank: Ingress of water in harmful quantity
shall not be possible when the enclosure is immersed in water under
defined conditions of pressure and time (up to 1 m of submersion).
Test duration: 30 minutes, Immersion at depth of at most 1 m
measured at bottom of device, and at least 15 cm measured at top of
device.
2. Specification:
| Model | IPX7-A | IPX7-B | IPX7-C | IPX7-D | IPX7E |
| Interior dimension(cm) | 80*80*120 | 120*120*150 | 30*30*30 | 80*50*150 | 60*60*150 |
| Outer dimension(cm) | 86*86*140 | 128*128*165 | 38*38*135 | 88*58*165 | 66*66*180 |
| Water depth (m) | 1.2 | 1.5 | 1.5 | 1.5 | 1.5 |
| Product under test (max) | 78*78*104cm | 118*118*134cm | 28*28*104cm | 78*48*134 | 58*58*134 |
| Material | Stalinite/stainless | stainless | stainless | stainless | stalinite |

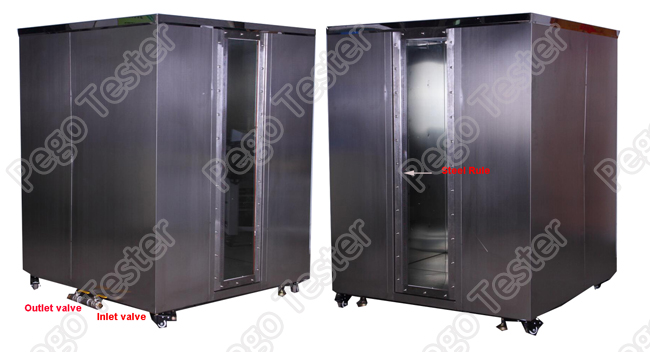

3. Picture:
4. COMPETITIVE ADVANTAGE
1). PEGO is professional on electrical lab testing equipment, our
goal is to provide our customers with better price, better quality
and better service.
2). Customized Service: We can help our customers to design and
develop new equipment according to their requirement. We are
flexible and capable Supplier.
3).Excellent Quality: 12 months warranty, 100% guarantee test
before delivery. And all our products can pass the third-lab
calibration which is authorized by ISO17025.
4). After Sales Service and Technical Assistance: 24 hours
technical support by email. Our professional team is always here
willing to be your technical consultant.
5). Quick Delivery: Our company provides just-in-time delivery, and
our freight forwarder can provide transportation services at the
most reasonable price to solve your worries.
6). Prompt Response to Customers: we promise to reply our customers
within 24 hours.
