IEC62262 IK07 to IK10 Pendulum and Vertical Impact Test Apparatus
(2 in 1)
1. Standard Conforms to
IEC60068-2-75, IEC62262, IEC60598, EN50102
2. Introduction
The IK mechanical impact test apparatus is designed according to
IEC60068-2-75 Test Eha and Test Ehc, and can meet the requirement
of IEC62262, IEC60598, EN50102, GB2423.55-2006, GB20138-2006 and
etc. It is apply to sheet metal, household appliance, luminaire and
etc. for mechanical impact testing. The device can be adjusted back
and forward, left and right, and the angle also can be adjusted.
The IK mechanical impact test apparatus can simultaneously realize
pendulum impact test and vertical impact test from IK07 to IK10 and
ball impact test (Φ50mm and Φ100mm). The pendulum adopts swing
pipe. The vertical impact and ball impact tests adopts
electromagnetic release to ensure the hammer vertical fall down and
ball Instantaneous fall. The test apparatus can move left and right
back and forth, adjustable up and down, and the impact angle is
adjustable.
Working principle: The sample is placed normally, the impact point
is adjusted, the impact device is positioned, and release the
hammer to freely impact the sample.
2. Parameter
| Swing Pipe | Steel pipe (Length: 1000mm, outer diameter: 15.9mm, thickness:
1.5mm), equip with hammers to equivalent mass |
| Lifting stroke | 200-1500mm (for pendulum and vertical impacts test) 200-2300mm (for ball impact test) |
| Drop mode | Button control and electromagnet instantaneous release (for
vertical impact and ball impact tests) Manual control (for pendulum impact test) |
| Impact hammers | 0.5kg, 1.7kg, 5kg, 5kg steel hammers for IK07 to IK10 Pendulum
impact and vertical impact tests |
| Guideway | 200mm, 300mm, 400mm |
| Impact balls | Φ50mm and Φ100mm |
| Working power | 220V/50Hz |
4. Characteristics of Striking Elements
| Characteristics of Striking Elements |
| Energy/J | ≤1 ±10% | 2 ±5% | 5 ±5% | 10 ±5% | 20 ±5% | 50 ±5% |
| Equivalent mass±2%kg | 0.25(0.2) | 0.5 | 1.7 | 5 | 5 | 10 |
| Material | Nylon | steel |
| R/mm | 10 | 25 | 25 | 50 | 50 | 50 |
| D/mm | 18.5(20) | 35 | 60 | 80 | 100 | 125 |
| f/mm | 6.2(10) | 7 | 10 | 20 | 20 | 25 |
| r/mm | - | - | 6 | - | 10 | 17 |
| l/mm | Depends |
5. Fall Height
| Fall Height |
| Energy/J | 0.14 | 0.2 | (0.3) | 0.35 | (0.4) | 0.5 | 0.7 | 1 | 2 | 5 | 10 | 20 | 50 |
| Equivalent mass/kg | 0.25 | (0.2) | 0.25 | (0.2) | 0.25 | (0.2) | (0.2) | 0.25 | 0.25 | 0 .25 | 0.5 | 1.7 | 5 | 5 | 10 |
| Fall height±1%mm | 56 | (100) | 80 | (150) | 140 | (200) | (250) | 200 | 280 | 400 | 400 | 300 | 200 | 400 | 500 |
6. Degrees of protection against external mechanical impacts
| IK01 | IK02 | IK03 | IK04 | IK05 | IK06 | IK07 | IK08 | IK09 | IK10 |
| 0.14J | 0.2J | 0.35J | 0.5J | 0.7J | 1J | 2J | 5J | 10J | 20J |

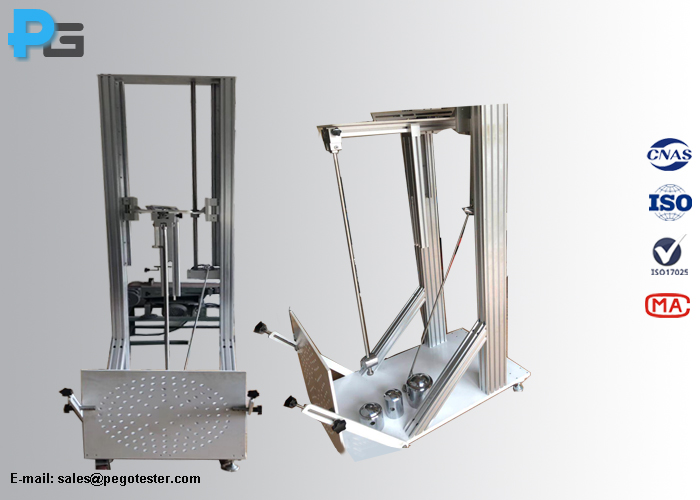

7. Picture
