Portable Built-In Sensor Push-Pull Force Meter
50N/100N/200N/500N/1KN Range Optional
1. Features
1). High accuracy and resolution
2). Peak hold function
3). Peak automatic clearance function (1-9 seconds)
4). Tolerance limit (upper and lower limit)
5). Light for judging qualified and unqualified value
6). Long stand-by time and utility time, with lithium battery and
low power chip
7). 30 memory data for calculate the average, max, min value
8). Automatic power off function (0~99 minutes)
9). 3 units available (N, Kn/kgf, gf, tf/lbf, k lbf)
10). Full range 150% overload
11). Reset acceleration of gravity function (0.700-9.900)
12). LCD screen turn direction function
13). Inductive background light
14). RS-232C to USB port
15). 2 sets installation size (145*30mm M3/ 90*40mm M4)
16). Signal output function a: exceeding the set point to send a
signal to control other equipment
17). Signal output function: b: break stop function, match our
motorized test stand for get the stop function when the material
break
18). Match synchronous analysis software, which can connect to PC
to get synchronous graph, and also can reseve, print and analysis.
2. Parameter
| Model | HP-2 | HP-3 | HP-5 | HP-10 | HP-20 | HP-30 | HP-50 | HP-100 | HP-200 | HP-300 | HP-500 | HP-1K |
| Max. range | 2N | 3N | 5N | 10N | 20N | 30N | 50N | 100N | 200N | 300N | 500N | 1KN |
| Resolution | 0.001N | 0.001N | 0.001N | 0.01N | 0.01N | 0.01N | 0.01N | 0.1N | 0.1N | 0.1N | 0.1N | 0.0001KN |
| Sensor | Built-in |
| Accuracy | ±0.5% |
| Dimension | 230x66x36mm |
| Unit | N/KN, g/kg, lb |
| RS-232C | RS232C connect to PC |
| Power | lithium battery 5v 1700mAh |
| Working voltage | AC 110~240V, 50-60Hz, 200mA |
| Load | cell inside |
| working temperature | 5℃~35℃ |
| relative humidity | 15%~80% RH |
3. Picture

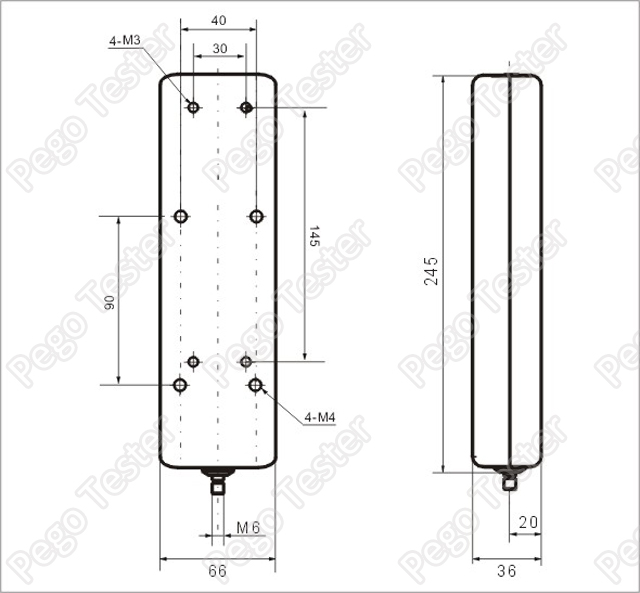

4. Installation size
