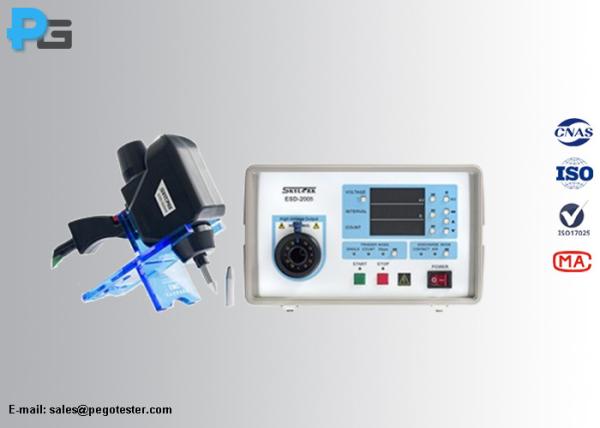

    30KV EMC Test Equipment Air Contact Electrostatic Discharge ESD Simulator IEC61000-4-2

    Ask Lasest Price
    Brand Name : PEGO
    Model Number : ESD-2005
    Certification : Third-lab Calibration Certificate
    Price : USD3800-USD5000/set
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    30KV EMC Test Equipment Air Contact Electrostatic Discharge ESD Simulator IEC61000-4-2

    Air and Contact Electrostatic Discharge (ESD) Simulator up to 30KV EMC Test System IEC61000-4-2


    1. Introduction

    Electrostatic Discharge (ESD simulator is completely meet the requirements of IEC61000-4-2 and GB/T17626.2. The ESD generator is designed for the assessment of electrical and electronic equipment to withstand ESD performance. Electrostatic discharge generator is widely apply to the fields of industry control equipment, household appliance, chemical electronics,communication electronics,components, auto control equipment and etc.

    ESD generator is to simulate electrostatic discharge, it belongs to EMC test according to IEC61000-4-2, there is two test methods: contact discharge and air discharge, the test voltage extends from 0.1KV to 30KV, user can freely choose and define the test grade.

    The ESD generator is consisted by ESD generator, ESD gun and two electrodes (cone sharp electrode is for contact discharge, and ball sharp electrode is for air discharge), the parameters of rising time, peak current and current at 30ns and 60ns are strictly meet the requirement of IEC61000-4-2.


    2. Features

    1) The air discharge completely meet the standard requirement to keep the voltage for 5s above, and do not affect by air humidity, with good repeatability.

    2) Built in IEC standard voltage, with auto trigger and user-defined function.

    3) HV protection, over current protection and short circuit protection.


    3. Parameter

    Output voltageESD-20050.5~30kV±5%
    PolarityPositive, negative
    Trigging modeSINGLEsingle
    COUNTDischarge according to the set number
    20pps20 times/second
    *Host self-trigger, voltage auto-evolving scan
    Discharge modeAir discharge, contact discharge
    Discharge Interval0.1~9.9s(0.05s@ 20pps mode)
    Counter0~999 (Discharge count)
    Resistor kit150pF±10%, 330Ω±10%
    discharge electrodesConical contact discharge electrode and spherical air discharge electrode
    Air discharge voltage keep timeMore than 5s
    Working environmentAmbient temperature:10℃~35℃ humidity:30%~60%
    PowerSingle AC85~265V,50/60Hz
    Dimension and weight250×210×130mm(D×W×H)/4kg

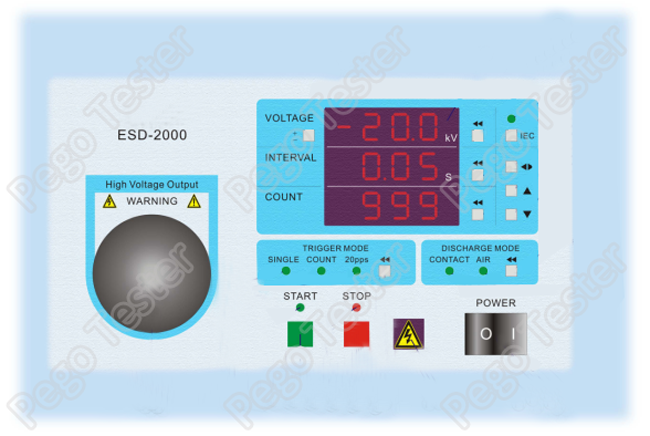

    4. Operation Interface


    5. FAQ

    1). What is the warranty period of the equipment?
    Answer: the equipment warranty is 12 months upon you receipt of the equipment


    2). Can you provide third-lab calibration certificate?
    Answer: Yes, the equipment can send to the third-labs authorized by ISO17025 and get the calibration certificate, but the buyer should undertake the charges.


    3). Does this equipment has English operation interface?
    Answer: of course, yes, the operation interface has English instruction.


    4). Your power plug can not be used in our country, can you change it for us?
    Answer: yes, we will change the power plug to fit your demands, please subbmit this issue when you make order.
