IEC60065 Electrical Safety Test Equipment Dielectric StrengthTest Instrument

1. Introduction of dielectric strength test instrument

Dielectric strength test instrument work with hipot tester can test the electric strength of thin-layer insulation material according to IEC60065 and UL1310. Stand part of the test device using the whole structure, made of 304 plate material processing. To improve the insulation board and creepage dielectric properties, surface brushed polished, bottom bracket the minimum distance from the edge of >35mm, the altitude of 2000 meters designed to meet the strength test requirements of 12KV.

2. Technical Parameter of dielectric strength test instrument

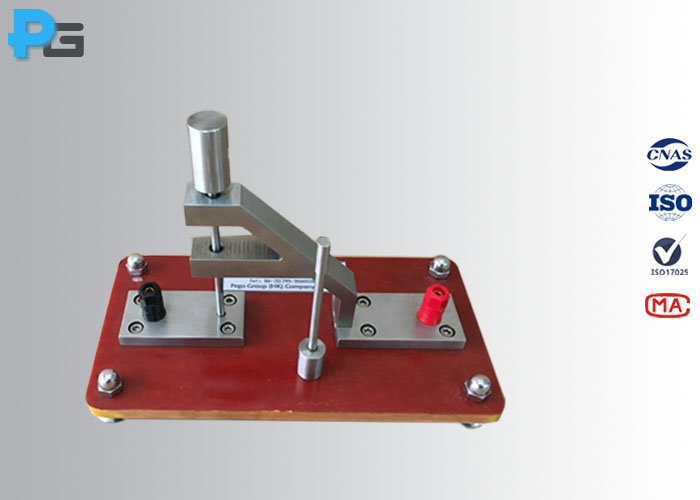

3. Picture

4. Usage

1). Place the sample to be tested between two metal rods.

2). Turn on the withstand voltage test device and adjust the corresponding test voltage and leakage current value.

3). After the voltage test is passed, the insulation resistance value of the test material is required, and the value cannot be less than the specified value.

5. Relative Product

10KV withstand voltage tester

6. FAQ

1). What is the warranty period of the equipment?
Answer: the equipment warranty is 12 months upon you receipt of the equipment

2). Can you provide third-lab calibration certificate?
Answer: Yes, the equipment can send to the third-labs authorized by ISO17025 and get the calibration certificate, but the buyer should undertake the charges.

3). Any attentions to use this equipment?

Answer: When testing the voltage, keep the device away from the withstand voltage tester to ensure safety. The test voltage should not exceed 12KV.
