LED Power Driver Laboratory Testing Equipment with Software to
Measure Voltage Current Harmonic
1. Introduction
HP1020S LED Power Driver Tester is designed according to
IEC62384-2006, IEC61000-3-2 and GB//T24825-2009, 8 windows to
display input and output parameters, includes voltage, current,
power, power factor, frequency, phase angle, total harmonic,
harmonic component@ 0~50. Sampling the input and output waveform by
A/D, all the parameters can be preset upper and low limit to alarm,
and can display the data. Equip with software can output the test
report.
2. Parameters
| Input Characteristics |
| Test function: | measuring the input RMS voltage, RMS current, active power, power
factor, frequency, total harmonic distortion, 0~ 50 harmonic
components and crest factor |
| Harmonic analysis function | Can measere the total harmonic distortion and 2~50 harmonic
components |
| Measure range | Voltage | 0.5V~300V |
| Current | 1mA ~ 5.000A |
| Frequency | 45Hz~65Hz |
| Bandwidth | 5KHz |
| Accuracy | ±0.4%F.S±0.1%R.D＋1digit |
| Output charateristics |
| Output steady-state characteristic test | RMS voltage, frequency, RMS voltage, power factor, active power |

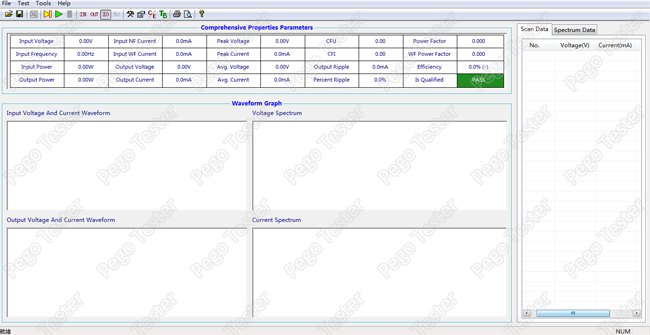

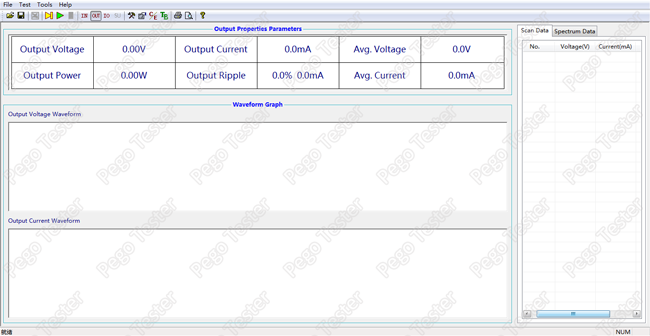

3. Software interface
4. Test Report
5. About Pego
Pego Tester (Jiangxi) is founded by PEGO GROUP in 2011, a
professional high-tech enterprise engaged in developing, marketing
and service for electronic test equipment. Our business scope
includes IEC60061-3 gauges for lamp caps and
holders,UL498/VDE0620/BS1363-1 gauges for plug and socket, IEC61032
IP code probes, UL probes, flame test apparatus, glow-wire test
apparatus, tracking index apparatus, needle flame test apparatus,
ground resistance tester, insulating resistance tester, hipot
tester, temperature chamber, waterproof test equipment, dust
chamber, spring hammer, pendulum hammer, tumbling barrel test
equipment, test vessels, ESD gun, surge generator, goniophotometer,
integrating sphere, spectroradiometer, power supply and etc.
Besides, we can provide customized service.
Nowadays, we have several production lines in China, we imported
advance technology and machines to make the gauges to keep high
precision, and use the world famous-brand components to make the
equipment more reliable. We promise the customers can get the high
quality products during the shortest lead time, and we can provide
the third-lab calibration certificates if customer request. The
Pego’s products have been sold to the world wide, and widely used
in labs, production line, QC and R&D departments with the
features of high precision, simple operation, humanization design
and good performance.
