UL507 PA100A Test finger Articulate Probe with Web Stop for Blade Fan with Third-Lab Certificate

1. Description:

Articulate probe with web stop is designed according to IEC62368 figure V.1, meet the requirements of UL507 figure 6.5 (PA100A), UL1017 figure 2, UL1062 figure 1.2, UL1310 figure 14.2, UL982 figure 7.1, UL474 figure 5.1, UL6500 figure 14, UL60065 figure 14, UL1082 figure 7.2 and UL1278 figure 8.3. Palm simulator and restricted joint movement simulates human finger movement. It’s made of nylon. Bell-Core accessory available. The handle is made of nylon. The finger is made of stainless steel.

2.Specification:

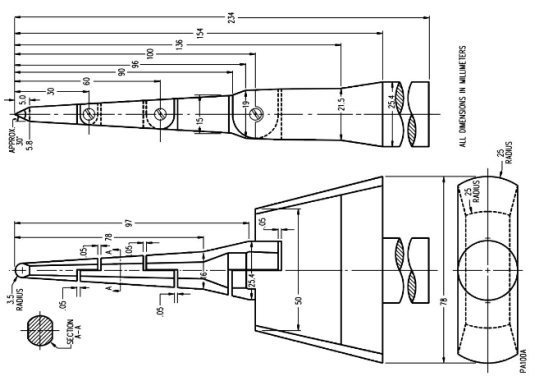

3. Figure

4. List of UL probes
