IP5X and IP6X Dust Test Chamber with Vacuum System, PLC and Touch
Screen Control
1. Introduction
The dust chamber is controlled by 7 inch touch screen and PLC
system, the interior of the cabinet is equipped with lighting and
power supply, which can be used for live dust-proof test of the
sample to simulate a more realistic use environment. There is a
mesh sample support plate inside the box for dust recycling, it is
made of stainless steel and has a load capacity of 50KG.
The sand and dust test chamber helps to evaluate the ability of the
equipment to withstand the effects of dust, it is apply to test
various auto parts includes lamps, instrument, electric dust cover,
steering system, door lock and etc., as well as inspection of
product sealing performance. Meet the test requirement of IP5X and
IP6X enclosure protection levels as specified in IEC60529.
IP5X test: the protection is satisfactory if the power has no
accumulated in a quality which may interface the correct operation
and cause harmful to equipment.
IP6X test: the protection is satisfactory if no deposit of dust is
observable inside the enclosure at the end of the test.
2. Features:
● Applied for IP5X and IP6X Test
● Adopts LCD color display and touch screen. The PLC is made by
Panasonic.
● The shell of the equipment adopts high quality steel, sprayed
with stoving varnish. And inner box and sample holder are made of
stainless steel to make sure rustless for long time use.
● Sand and dust: talcum powder, dry powder, portland cement paste
and etc.
● Control system: adopt Programmable Time Controller.
● There is a device for replacing the dust at the bottom of the
device, which can easily replace the used dust 100%.
● Vacuum system: equipped with vacuum pump, vacuum pressure, air
filter, flow meter, pressure regulating triple piece, connecting
pipe.
● In order to ensure that the dust does not stick to the wall of
the box and condense, a special device is installed. The working
time of the device is adjustable, and it can work alternately
automatically.
● There is an exhaust pipe in the box, which can complete the
vacuuming of the sample (the sample needs to be reserved for the
exhaust hole).
● Heating system: A heater is installed in the circulating air duct
to heat the dust and avoid dust condensation,
● Transparent observation window made of toughened glass material,
working chamber equipped with LED lighting.
● Support live test, a socket is attached on the wall of working
chamber, the sample can be powered on or off during the test.
● Safety device: leakage protection, overheat protection
● Accessory: 2KG talcum powder and a metal square-meshed sieve
(nominal wire diameter 50μm and nominal width of a gap between
wires 75μm) will be shipped together with the chamber, the talcum
powder can be used for 20 times
3. Specification
| Working dimension(mm) | 1000*1000*1000(L*D*H) |
| Outer dimension(mm) | 1450*1250*2030(L*D*H) |
| Temperature range | RT+10~+40℃ |
| Temperature evenness | ≤2℃ |
| Temperature fluctuation | ≤±0.5℃ |
| Humidity | 45%-75% |
| Wire diameter of metal net | 50μm |
| Wire interval | 75μm |
| Airflow velocity | ≤ 2.5m/s |
| Time range | 0~999H(adjustable) |
| Vibration Time | 0-999H(adjustable) |
| Time Accuracy | ±1s |
| Dust concentration | 2~4kg/m3 |
| Sand and dust | talcum powder, dry powder, portland cement paste |
| Vacuum degree | 0-10Kpa (adjustable) |
| Evacuation speed | 0-60L/H (adjustable) |
| Circulatory system | Dust recycling |
| Powder spraying and dust reduction method | Free |
| Working condition | Temperature:15℃～35℃, humidity:≤85%R.H.,pressure: 86kPa～106kPa |
| Configuration | Observe window equip with window wiper, lamp, metal sieve, 2KG
talcum powder and etc. |
| Power socket for EUT | IP66, 220V/16A |
| Power supply | 1.5KW, AC220V±10%, 50Hz (single phase) |

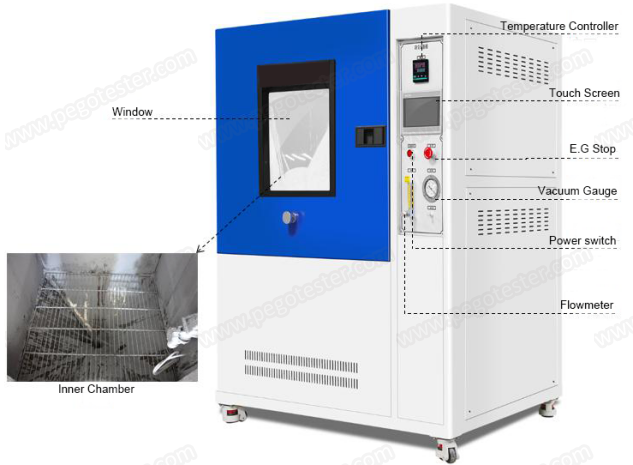

4. Detail picture
