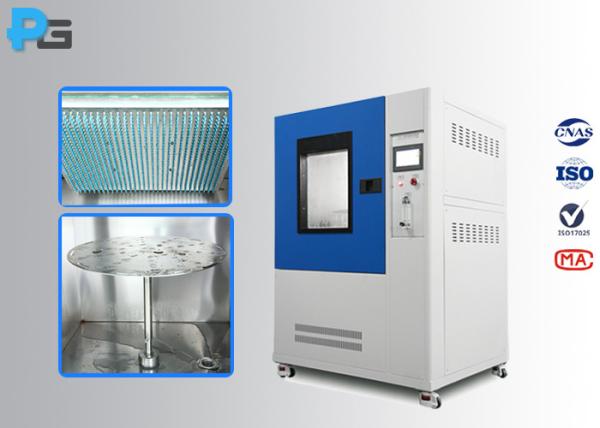

    PLC Touch Screen IP Testing Equipment IPX3 IPX4 Water Spray Jet Test Chamber

    Rain Test Equipment R1/R2/S1/S2/IPX3/IPX4 Water Spray and Jet Test Chamber PLC Touch Screen

    1. Introduction

    The IP waterproof test machine is designed according to the IP code no. IPX3/4/4K of IEC60529:1989+A1:1999 and ISO20653 standard. It’s also met the requirements of R1, R2, S1, and S2 of JIS D0203 standard.

    The rotating tube with 2 spray nozzles for R1/ R2 testing and rotating tube with 40 jet nozzles for S1/S2 testing are strictly designed according to JISD0203, the oscillating tube for IPX3/4 testing is strictly designed according to IEC60529, with 25 nozzles and 0.4 diameter. A waterproof socket-outlet for specimen is built-in the test chamber to support live test, the front panel is transparent for easy observation of the experimental process.


    TypeSymbolTest PurposeTest Method
    Spray TestR1Auto parts against water direct contactwater pressure: 0.01Mpa, water flow: 1.9L/min, test time: 10min
    R2Auto parts against rain or spray water indirect contactwater pressure: 0.03Mpa, water flow: 3.2L/min, test time: 10min
    Jet TestS1Auto parts against rain or jet water direct contactwater pressure: 0.10Mpa, water flow: 24.5L/min, test time: 30min
    S2Auto parts against riptidewater pressure: 0.30Mpa, water flow: 39.2L/min, test time: 1h
    Spray TestIPX3Enclosure against spraying waterspray±60 degrees from vertical, water flow: 0.07L/min±5% per hole, test time: 10min
    IPX4Enclosure against splashing waterspray±180 degrees from vertical, water flow: 0.07L/min±5% per hole, test time: 10min


    2. Features:
    ● It’s suitable to the IPX3, IPX4, IPX4K waterproof test, and JIS D0203 R1/R2/S1/S2 spray water test.
    ● The shell of the equipment is made by high quality steel plate, and the inner chamber of the equipment and the turntable is made of SUS304# stainless steel.
    ● A water filter is built-in chamber to prevent the nozzles from block, and it is easy to change regularly.
    ● Box-type structure with water tank, a transparent window in the door and LED light installed the the cabinet which easy to observe the test
    ● The flow and pressure of IPX3/4 tube and JIS nozzle are manual controlled on the panel
    ● Turntable driven: speed and angle can be set on the LCD screen
    ● Adopt Taiwan Weilun 7 inch screen and Panasonic PLC
    ● R1, R2, S1, S2 can work alone or at the same time, IPX3 and IPX4 can work independently

    3. Parameters:

    Working Chamber Size1000*1000*1000mm (L*D*H)
    Dimension1500*1380*2000mm (L*D*H)
    Turntable Diameter¢400mm
    Turntable Load Weight50KG
    Lifting height450-750 mm
    Turntable Speed1 -20r/min
    Turntable Angle0° or 15° (Horizontal)
    Test Time0-999 min
    WeightAbout 250kg
    Parameters of IPX3/4
    Tube Radius400mm
    Tube Flow

    IPX3=1.1L/min; IPX4=1.8L/min
    IPX4K=15L/min(0-18L/min adjustable)

    PressureIPX3=80Kpa, IPX4=80Kpa; IPX4K=400Kpa (0-500Kpa adjustable)
    Aperture of drop (mm)IPX3-4=0.4mm, IPX4K=0.8mm
    Aperture interval50mm
    Tube inner diameter15mm
    Tube angle120º (IPX3), 350º (IPX4) or custom setting
    Tube speedBack and forth at 1200: 4s; back and forth at 3600:12s
    Parameter of JIS D0203 R1/R2
    Rain nozzleStrictly designed according to the figure of JIS D0203 standard
    PressureR1=0.01MPa, R2=0.03MPa
    Nozzle number2pcs
    Spray water time range0~99h59m, settable
    Tube rotates around the shaft1~23r/min, adjustable
    Parameter of JIS D0203 S1/S2
    Spray NozzleStrictly designed according to the figure of JIS D0203 standard
    PressureS1=0.1MPa, S2=0.3MPa
    Nozzle diameterΦ1.2mm
    Nozzle number40pcs
    Spray water time range0~99h59m, settable
    Tube rotates around the shaft1~23r/min, adjustable
    Electric Parameter
    Power supply220V
    Power supply of specimen220V
    Power1.0KW
    Safety protection functionLeakage protection, water shortage protection, short circuit protection


    4. Operation Interface



    Key Advantages of Waterproof IP Testing Equipment
    ● Large Viewing Window with Interior lighting, Easy to observe.
    ● Standard and Custom, We have different types for different sizes of samples.
    ● Water circulation system to save water and cost.


    Application Of IP Testing Equipment
    The main function of the equipment is used for electronic and electrical products, lamps, cabinets,electrical components, automobiles, motorcycles, aerospace, military, and other scientific research electrical components, automobiles, motorcycles, aerospace, military, and other scientific research units of external lighting, signal devices, and parts of products in simulated rain weather conditions, the physical and other related properties of the product are tested. physical and other related properties of the product are tested.
    This machine is widely used in the lamps and electrical and electronic product certification testing institutions and for testing the waterproof of electrical and electronic products of shell protection level.

    5. FAQ
    1). What is the warranty period of the equipment?
    Answer: the equipment warranty is 12 months upon you receipt of the equipment

    2). Can you provide third-lab calibration certificate?
    Answer: Yes, the equipment can send to the third-labs authorized by ISO17025 and get the calibration certificate, but the buyer should undertake the charges.

    3). Does this equipment has English operation interface?
    Answer: of course, yes, the operation interface has English instruction.

    4). Your power plug can not be used in our country, can you change it for us?
    Answer: yes, we will change the power plug to fit your demands, please subbmit this issue when you make order.
