IEC62196-1 Clause 26.2 50.8mm Ball Impact Test Apparatus for EV Socket-outlet and Vehicle Inlet

1. Introduction of ball impact test apparatus

The ball impact test apparatus is designed according to IEC62196-1 clause 26.2 figure 18 and table 13. It is applied to do the drop impact test for the accessories of the ev socket-outlet and vehicle inlet. The device can perform vertical free fall impact and horizontal pendulum impact, it has the features of easy operation and high accuracy.

Swinging or dropping a 50.8mm diameter steel sphere, weighing 0.535kg to the sample, from a height (H), which will produce an impact like 1J, 2J, 3J or 4J. The sample being tested shall be rigidly supported and the impact made normal to sample by means of the ball impact test apparatus.

2. Specification of ball impact test apparatus

Table 13 - Impact energy for ball impact test

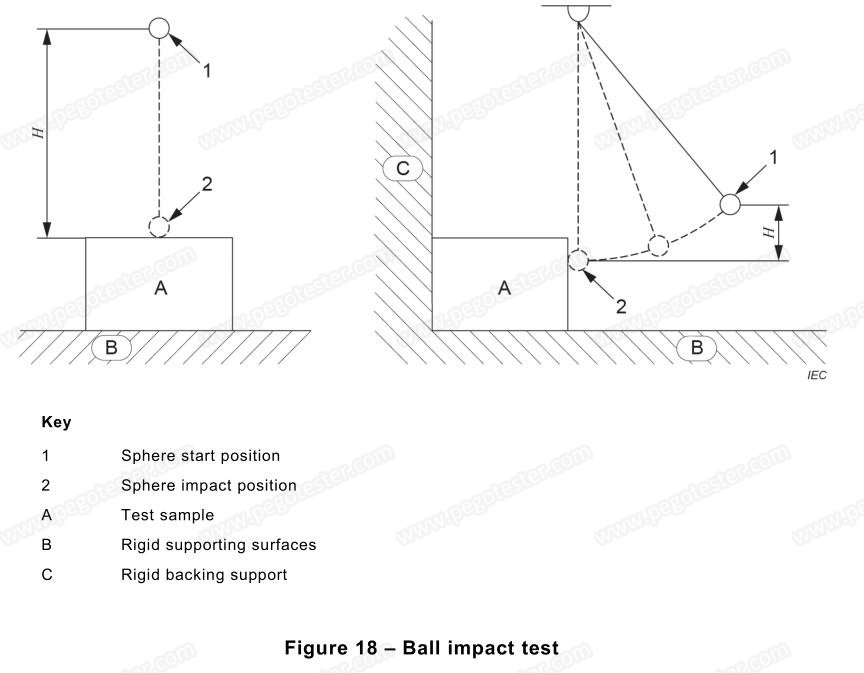

3. Figures:

4. FAQ

1) What kind of steel ball used for the ball impact test apparatus?

Answer: The ball is with 50.8mm diameter and 535g weight.

2) Will the apparatus come with the calibration certificate?

Answer: Yes, all of our test machines can deliveried with third-lab calibration certificates, but the cost is charged alone.
