Electrostatic Discharge Generator 0~20KV Contact Discharge and Air
Discharge LCD Touch Screen
1. Introduction:

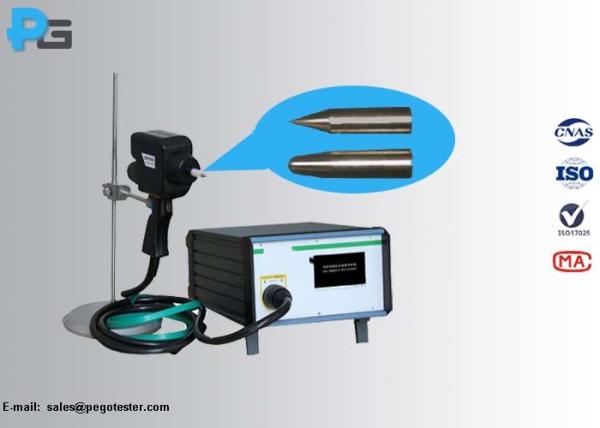

The electrostatic discharge generator is consisted by ESD generator, ESD gun and two electrodes (cone sharp electrode is for contact discharge, and ball sharp
electrode is for air discharge), the parameters of rising time,
peak current and current at 30ns and 60ns are strictly meet the
requirement of IEC61000-4-2.
The ESD generator is designed for the assessment of electrical and electronic
equipment to withstand ESD performance. Electrostatic discharge
generator is widely apply to the fields of industry control
equipment, household appliance, chemical electronics,communication
electronics,components, auto control equipment and etc.
ESD generator is to simulate electrostatic discharge, it belongs to
EMC test according to IEC61000-4-2, there is two test methods:
contact discharge and air discharge, the test voltage extends from
0.1KV to 20KV, user can freely choose and define the test grade.
2. Features:
1) The air discharge completely meet the standard requirement to
keep the voltage for 5s above, and do not affect by air humidity,
with good repeatability.
2) LCD touch screen, easy to operate and simple to update the
software.
3) Built in IEC standard voltage, with auto trigger and
user-defined function.
4) HV protection, over current protection and short circuit
protection.
5) With 1000 groups memories.
3. Parameters:
| Model | ESD-2000Q | ESD-2005Q |
| Output voltage | Contact discharge | 0.1－20kV ±3％ | 0.1－30kV ±3％ |
| Air discharge | 0.1－20kV ±3％ | 0.1－30kV ±3％ |
| Holding time | >5s |
| Polarity of output voltage | Positive, negative, positive/negative auto |
| Trigger mode | Single,counting,20pps,other |
| Discharge interval: | 0.05~99.99s |
| Numbers of discharge: | 1~9999 |
| Energy storage capacitance: | 150pF ±10％(replaceable) |
| Discharge resistor: | 330Ω ±10％(replaceable) |
| Waveform of contact discharge | Meet the standards of EN/IEC 61000-4-2,GB/T 17626.2 |
| Rising time: | 0.8ns ±25％ |
| First peak current | 7.5A ±15％ @ 2kV | 15A ±15％ @ 4kV |
| 22.5A ±15％ @ 6kV | 30A ±15％ @ 8kV |
| Current at 30ns | 4.0A ±30％ @ 2kV | 8.0A ±30％ @ 4kV |
| 12.0A ±30％ @ 6kV | 16.0A ±30％ @ 8kV |
| Current at 60ns | 2.0A ±30％ @ 2kV | 4.0A ±30％ @ 4kV |
| 6.0A ±30％ @ 6kV | 8.0A ±30％ @ 8kV |
| Environment: | Temperature:15°C－35°C;Humidity:10%－75% |
| Power supply: | AC220±10％,50/60Hz,300W |
| Dimension: | 260mm(W)×170mm(H)×360mm(D) |
