IEC60068-2-75 IK07-10 Vertical Impact Test Apparatus with 2J, 5J, 10J and 20J striking Elements

1. Introduction

VH-1 IK07-IK10 vertical impact hammer test apparatus is designed according to IEC-60068-2-75 Test Ehc <Environmental testing - Part 2: Tests - Test Eh: Hammer tests>. It consists of striking element which falls freely from rest through a vertical height, on to the specimen surface held in a horizontal plane and guide tube. The equipment is released by electromagnet to ensure instantaneous release and vertical drop.

2. Parameter

1) Travel height: 0-1000mm, manual adjustable

2) Release mode: Electromagnet release

3) Hammer: 2J, 5J, 10J, 20J, 50J

4) Guideway: equipped with 400mm, 300mm, 200mm, and 400mm length guide tube

5) Height of fall

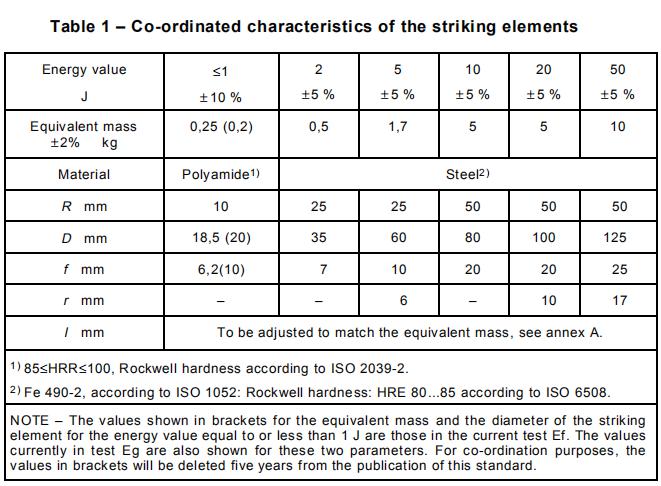

3. Characteristics of striking elements:
