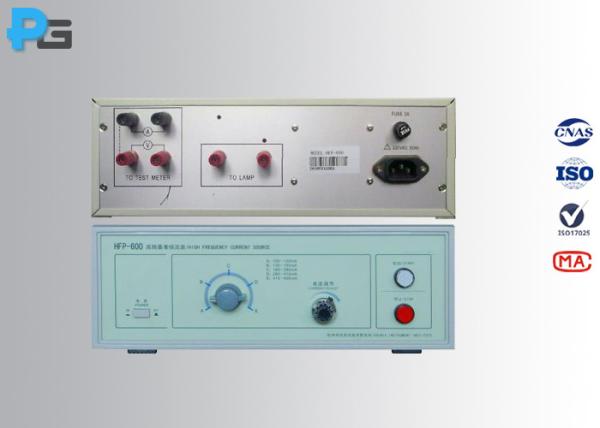

23~26Hz High Frequency Reference Current Source for HF Tube According to IEC60081

1. Introduction

High frequency reference Current Source is applied to high frequency fluorescent lamp such as T5 tube, power frequency fluorescent lamp such as T8/T12 tube and ballast manufacturing. Equip with the high frequency digital power meter, it can makes the HF tube test system.

2. Specification

● Input voltage:200V~240V 50/60HZ

● Input power: 150W

● Output current: 100mA-600mA (adjustable)

● Output current stability: setting value± 0.5%

● Total harmonic distortion: THD＜2.5% (HF current wave)

● Output Frequency: 23~26KHz (meet the requirements of GB/T10682-2002 and IEC60081:1997)

● Output frequency stability: show value± 0.3KHz

● Working environment: 0~40℃ R.H.: 85%

● Dimension: 340*300*90mm

● Weight: 7KG

UI2002A Electronic Ballast High Frequency Digital Power Meter

Specification

● Test parameter: Voltage, current, power, power factor/frequency

● Voltage range: 10~600V

● Current range: 10~2000mA

● Frequency range: 20~70KHz

● Accuracy: class 2

Connection Diagram:
