IEC60061 - 3 G13 lamp Cap Gauge Go Gauge 7006 - 45 and No Go Gauge 7006 - 44

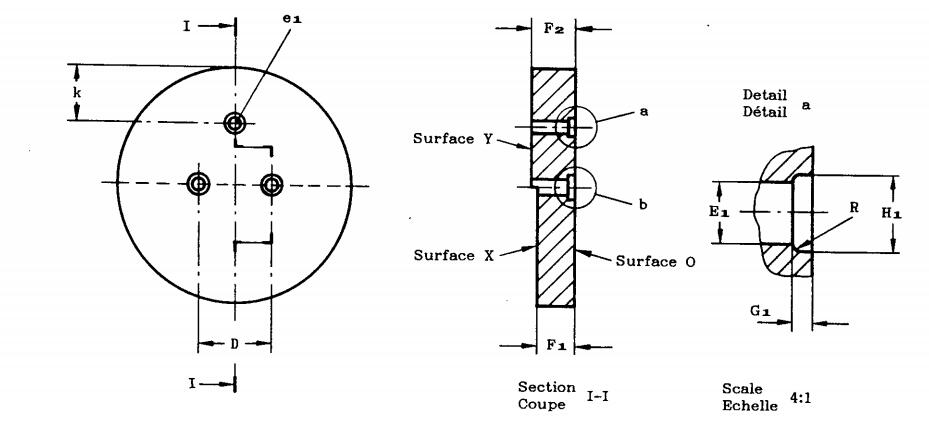

“Go” Gauge for Bi-pin Cap G13 on Finished Lamps (7006-45-4)

Purpose: to check dimensions E max,, F min, F max, and the combined pin diameter and displacement of pin (including bosses) of bi-pin caps G13 on finished lamps.

Testing: the pins of the caps on finished lamps shall enter the gauge at surface O and, when fully inserted, the surfaces of cap and gauge shall contact. In this position the end of the pins shall be co-planar with or project beyond surface X, but shall not project beyond surface Y. Each individual pin shall enter hole e1 at surface O until the face of the cap and the surface of the gauge contact.

“Go” and “Not Go” Gauge for Unmounted Bi-Pin Cap G13 (7006-44-4)

Purpose: to check dimensions E min, E max, F min, G max, H max, and the combined pin diameter and displacement of pins (including bosses) of unmounted bi-pin caps G13.

Testing: the pins of the cap shall enter the gauge at surface O and, when fully inserted, the surface of cap and gauge shall contact. In this position the ends of the pins shall be co-planar with or project beyond surface X. Each individual pin shall enter the hole e2 until the boss of the pin and the surface of the gauge contact, but they shall not enter hole e1. The boss of the individual pin shall enter hole b at surface O until the surface of the cap and the gauge contact.
