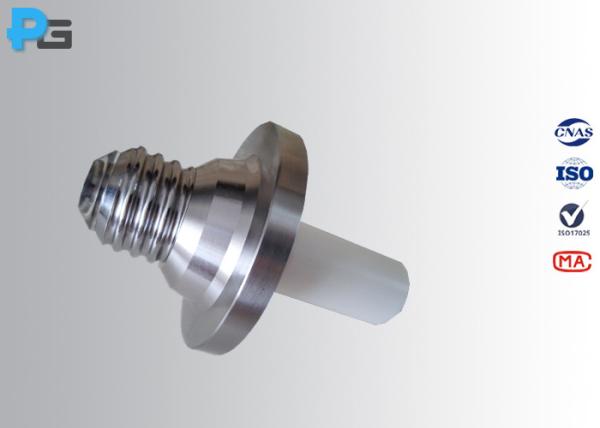

Protection Gauge and Plug Gauge for Lampholder E40 Against Accident Contact 7006-23 7006-24

Gauge for protecting against Bulb-neck damage and for testing contact-making in lampholder (7006-23-3)

Purpose: To check:

a. Protection against bulb-neck damage by the rim of the E40 lampholder.

b. Contact-making in E40 lampholders with respect to lamps having dimensions adverse to contact-making.

Testing:

a. When the gauge is screwed fully home with a torque of 2 Nm, there shall be a clearance between the gauge and the edge of the rim of the lampholder.

b. In this position and with the lampholder connected in the test circuit as shown, the indicator lamp shall light.

Plug gauge for lampholders for testing protection against accidental contact (7006-24-3)

Purpose: To check E40 lampholders in respect of protection against accidental contact.

Testing: The gauge is screwed fully home.

The test circuit is checked as shown by the dotted line. In this position the indicator lamp shall light. With the gauge still in this position the plug is connected to the test probe, which is then slid downwards as far as it will go into the space between the gauge and the holder. In this position the lamp shall not light.

Lampholder Gauge List

Note: Please send us the figure number on the inquiry.
