    ISO20653 IPX9K High Pressure High Temperature Jet Spray Test Chamber for Auto Parts

    Ask Lasest Price
    Brand Name : PEGO
    Model Number : IP9K
    Certification : Third-Lab Calibration Certificate
    Price : USD12000~USD18000
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    ISO20653 IPX9K High Pressure High Temperature Jet Spray Test Chamber for Auto Parts

    ISO20653 IPX9K High Pressure High Temperature Jet Spray Test Chamber for Auto Parts


    Introduction:

    IPX9K High temperature and high pressure jet spray test chamber is designed according to IEC60529, DIN40050-9 figure 7 and ISO20653 figure 8 and 9. IPX9K fan jet and jet distribution for test device to verify protection against high pressure/steam jet cleaning. It is applied to electrical equipment in road vehicles, motors, electric components and auto parts to do the waterproof test. After the test, the user can judge if the performance of the product can meet the requirements or not, and then do the re-designing and improvement.


    Features:
    1) high-quality steel plate, coating with stoving varnish.
    2) The chamber inner and support are made by SUS304# stainless steel.
    3) Adopts 7 inch touch screen and PLC core control component, easy to operation and auto control.
    4) Adopts high quality stepping motor, set the speed and angle by touch screen.
    5) IPD temperature control, set the temperature by touch screen.
    6) Test time: 0-999min adjustment, auto stop.
    7) Communication function optional, can work with PC to save the data.


    Parameter:

    ModelIPX9K
    Inner sizeL1000*D1000*H1000mm (depends on the specimen)
    External sizeL1400*D1180*H1850mm
    Test time30S for each position
    Jet angle0°30°60°90°
    Numbers of jet4
    Diameter of turntable400mm
    Lifting mode of turntableFixed type
    Spray distance100-200mm (manual control)
    Water pressure8000-10000Kpa
    Water flow14~16L / min
    Temperature250C (room temperature), 80±5℃
    Test time120s (30s/position)
    Rotational Speed4~10r/min(adjustable)
    Bear weight50kg
    Protection deviceLeakage, water break, short circuit
    Power(V)380V/50Hz
    Sample Power (V)220V
    Power(KW)10

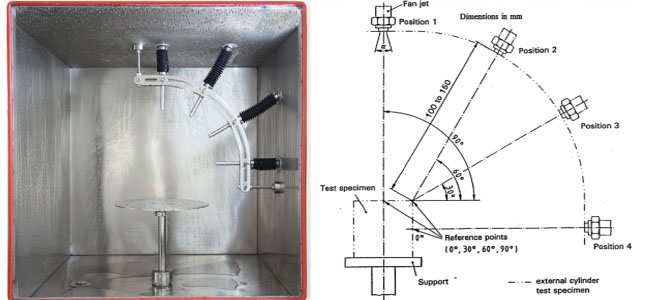

    Picture:

    Quality ISO20653 IPX9K High Pressure High Temperature Jet Spray Test Chamber for Auto Parts for sale
