IEC60529 Environment Test Equipment IPX1 and IPX2 Water Vertical Drip Box

Introduction of IPX1 and IPX2 Water Vertical Drip Box:

IPX1-2 Drip Box is designed according to IEC60529 clause 14.2.1 and 14.2.2. It is applied to simulate the conditions of vertically dripping and dripping with 15 degrees tilted, and then to check if the products ( electronics, luminaire, electric components, auto parts and etc.) can meet the requirements. The equipment can be customized according to size of test specimen .

Features of IPX1 and IPX2 Water Vertical Drip Box:

1) For IPX1 and IPX2 testing

2) Adopts column structure, which can be fixed on floor and runs stability. Easy to pack and install.

3) The shell and turntable are made by SUS304 stainless steel, to ensure the rustless for long time use.

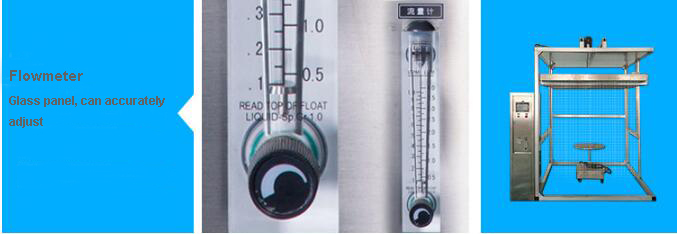

4) Equip with flowmeter, can accurately manual adjust the flowmeter.

5) The cone-sharp nozzles are made by brass, and easy to change. The stainless steel protective cover under the nozzles can protect user from any hurts.

6) Equip with high accuracy filter, the filter element can change regularly.

7) The drip board can lift, and will auto stop at the position of 200mm upper of the test specimen.

8) Control system: 7 inch touch screen+ Panosonic PLC.

Specification of IPX1 and IPX2 Water Vertical Drip Box:

Pictures of IPX1 and IPX2 Water Vertical Drip Box:
