IEC60884-1 Plug Socket Tester Maximum and Minimum Withdrawal Force Test Apparatus

1. Introduction

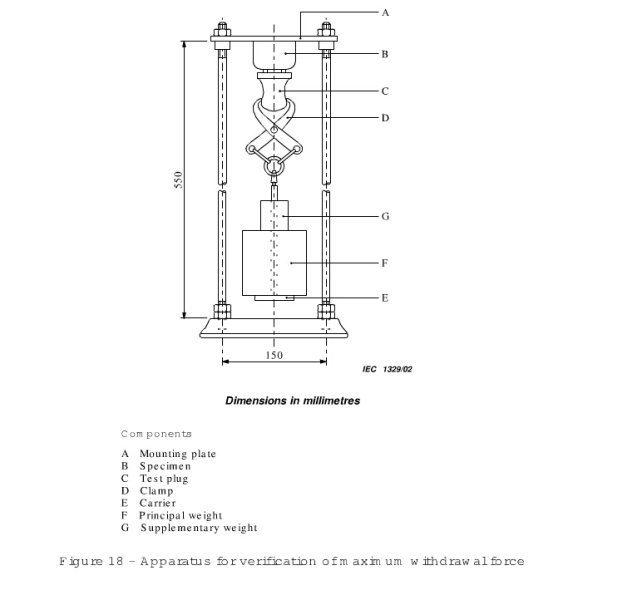

Maximum and minmum withdrawal force test apparatus is designed according to IEC 60884-1 Fig 18 and Fig 19 and VDE0620. The clamping system is easy to operate. The top plate swivels up from a horizontal position to a vertical orientation and the clamping device can be rotated in the top plate. These features allow the device to be set up in many different configurations to meet different standard requirements. Standard plugs and weights are supplied to perform testing on sockets rated up to 16A. Test plugs made from hardened steel with roughness not exceeding 0.8mm.Top plate pivots from horizontal to vertical.

2. Specification

1) Mass incudes pricipal mass and supplementary mass

2) Standard configuration: 1 piece of 10A single pin guage/16A single pin gauge/10A dipolar pin gauge/10A tripolar pin gauge/16A tripolar pin gauge

3) 1 set of clamp device, 1 piece of carrier
