IEC60529 High Pressure Water Tank for IPX8 Continue Immersion Testing

Introduction:

IPX8 continuous immersion tank is designed according to IEC60529-2001 regarding the second characteristic numerals 8. Waterproof test simulates the condition of raining, which is mainly applied to electronic products, luminaire, electric components, motor and house-holding appliance. The waterproof test can help to judge the products’ performance, and provide the basis for design, improve and inspect. IP8X test is subject to the agreement between user and manufacturer, the test simulates the condition under 0 to 50m below the water.

Features:

1). For IPX8 Testing

2). Made by #304 stainless steel, adopts integrated welding molding technology.

3). Special silicon sealing ring, with features of good elasticity and no easy to damage.

4). Equip with safety valve, will auto depressurize if exceed the rated pressure to protect the user from any hurt caused by improper operation.

5). Adopts branded electronic components, like LG, PANASONIC and OMRON.

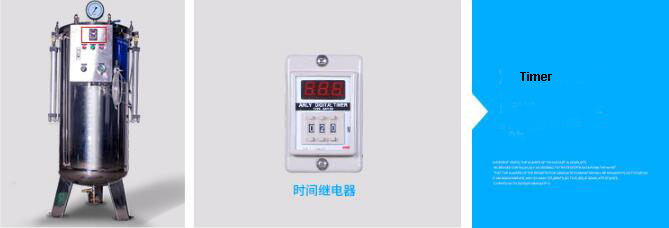

6). Test time: 0~999 min (preset), auto depressurize when time up.

7). Pressure sensor with accuracy of 0.001Mpa (display) and ±0.002Mpa (control)

8) Four wheels with brake, easy to move.

9) Holes can be designed according to user’s demands for live test.

Specification

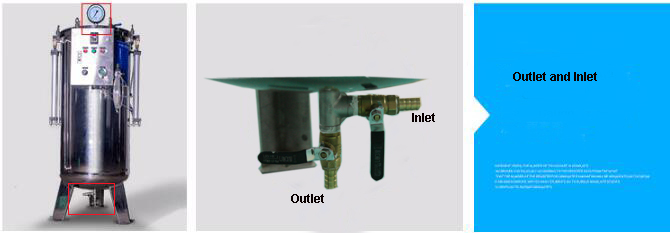

Picture:
