IEC60598-1 1.1m Test Chain Made by 63% Cu and 37% Zn with CNAS Calibration Certificate

1. Introduction of Test Chain:

Test chain is designed according to GB7000.1 and IEC60598-1 clause 4.26.3 & figure 29 . It is mainly applied to provided a prevent the impairing of safety due to unintended short-circuiting of uninsulated accessible SELV part of opposite polarity. The test chain is made by copper zinc alloy (Cu: 30%, Zn: 37%), the chain shall have a resistance value of 2.5Ω/m±20% when stretched with a load of 200g/m.

2. Parameter of Test Chain:

● Made of 63%Cu/37%Zn.

● Resistance value: 2.5Ω/m±20%

● Length: 1.1m

● Diameter: φ2mm

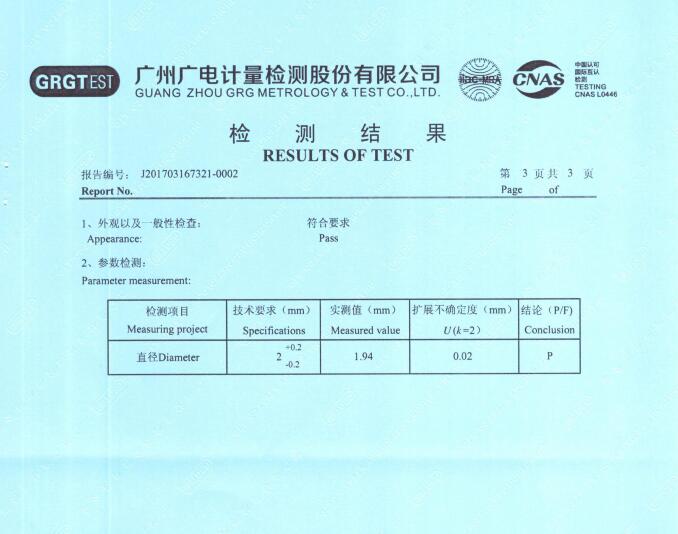

Calibration Result of Test Chain:
